Model T24-IA
Wireless OEM PCB Transmitters
 |
Product features:
- 0-20 mA input
- Miniature PCB for fitting inside sensors
- Low power mode
- Remote power ‘on’ and ‘off’
- High speed 200 updates per second
- Transmits on licence free 2.4 GHz
- Simple wireless configuration and calibration
- Antenna options giving up to 800 m (2,600 ft) range

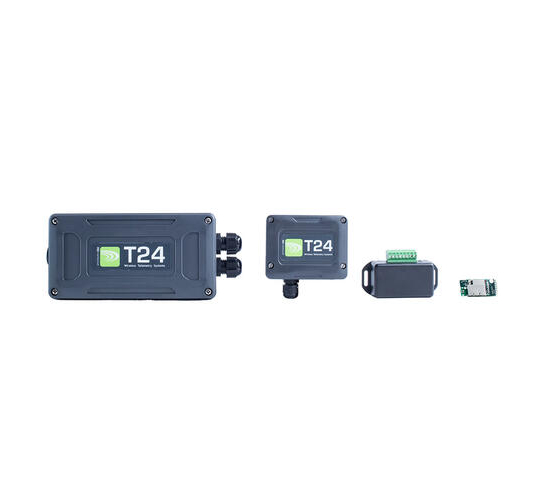

- Choice of enclosures T24-ACM, T24-ACMi, T24-ACMm
Description
The OEM wireless current sensor transmitter, provides wireless current measurement for an input range of 0-20 mA. Suitable for a range of 4-20 mA sensors such as pressure, inclinometer, accelerometer, temperature & displacement. The small module size allows for the option of embedding it within the sensor housing. Provides 5 V sensor power.
Click here to view & download associated free software.
Low power modes allow the T24-IA OEM wireless current (4-20 mA) sensor transmitter to ‘power down’ between transmissions or to ‘power off’ completely and can be controlled by other T24 products such as the handheld displays or a base station. The T24-IA can be configured to last several years on 2 x alkaline AA batteries or alternatively powered from 2 x NiMH or 1 x 3 V Lithium.
The high accuracy, low noise measurement electronics in the T24-IA delivers high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted wirelessly at rates up to 200 per second to other T24 devices such as handheld displays, analog outputs and base stations etc.
Although this OEM wireless current (4-20 mA) sensor transmitter T24-IA can be used ‘as is’ for OEM solutions there are a number of enclosure options available. The module is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.
Integral antenna option offers up to 600 m (1969 ft) range and external antenna options allows up to 800 m (2600 ft) range in an open field site.
The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio telemetry technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
See the battery life of your wireless sensing system using the Battery Life Calculator.
Module transmits and Receives giving:
1. Full error detection and correction
2. Ability to switch to low power modes
3. Calibration & configuration via radio telemetry
4. Ability to be switched from sleep to operating mode via radio
5. Calibration stored within the module
6. Remote battery check
*Maximum range achieved in open field site with the T24 acquisition module at a height of 3 metres (9.8 feet) above ground and T24-HS held at chest height pointing towards the acquisition module. Specification at 3V supply at 25°C
