Model T24-BSd

Wireless Base Stations

Dongle Base Station

  • Provides wireless data from T24 transmitter modules
  • Up to 500 m (1,600 ft) wireless range
  • Configures any T24 Telemetry module via USB

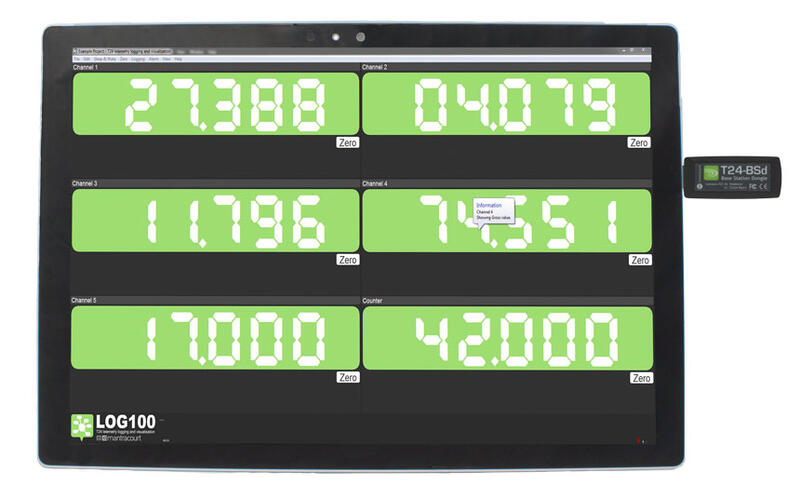

  • Ideal for portable logging using 100 Channel logging and viewing software

Products Instrumentation Wireless Telemetry Model T24-BSd

Model T24-BSd

Wireless Base Stations (USB, RS232 & RS485)

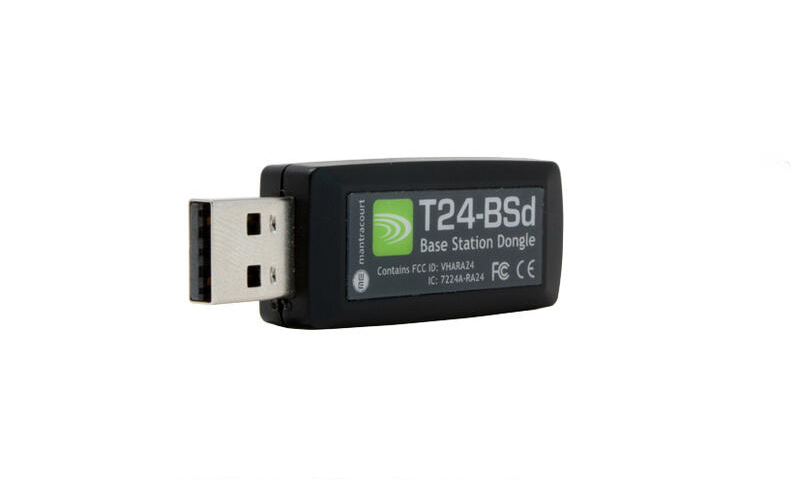

Wireless Telemetry Dongle Base Station Model T24-BSd

Product features:

  • Provides wireless data from T24 transmitter modules
  • Up to 500 m (1,600 ft) wireless range
  • Configures any T24 Telemetry module via USB
  • Portable device which is designed for laptops and tablets
  • Ideal for portable logging using 100 Channel logging and viewing software
  • IP50 rated enclosure dimensions 45 x 19 x 11 mm

Description

The T24 wireless telemetry dongle base station (T24-BSd) is the smallest in our base station range and enables you to connect to the wireless telemetry moduels at a line of sight range of up to 500 metres.

It provides a portable solution with no wiring that makes it ideally suited for laptops and tablets that run a full version of Windows.

It draws power from the USB bus and therefore no further components are required to configure and control remote devices from a PC. It is offered as an alternative to the T24-BSue base station which provides up to 800 m range.
